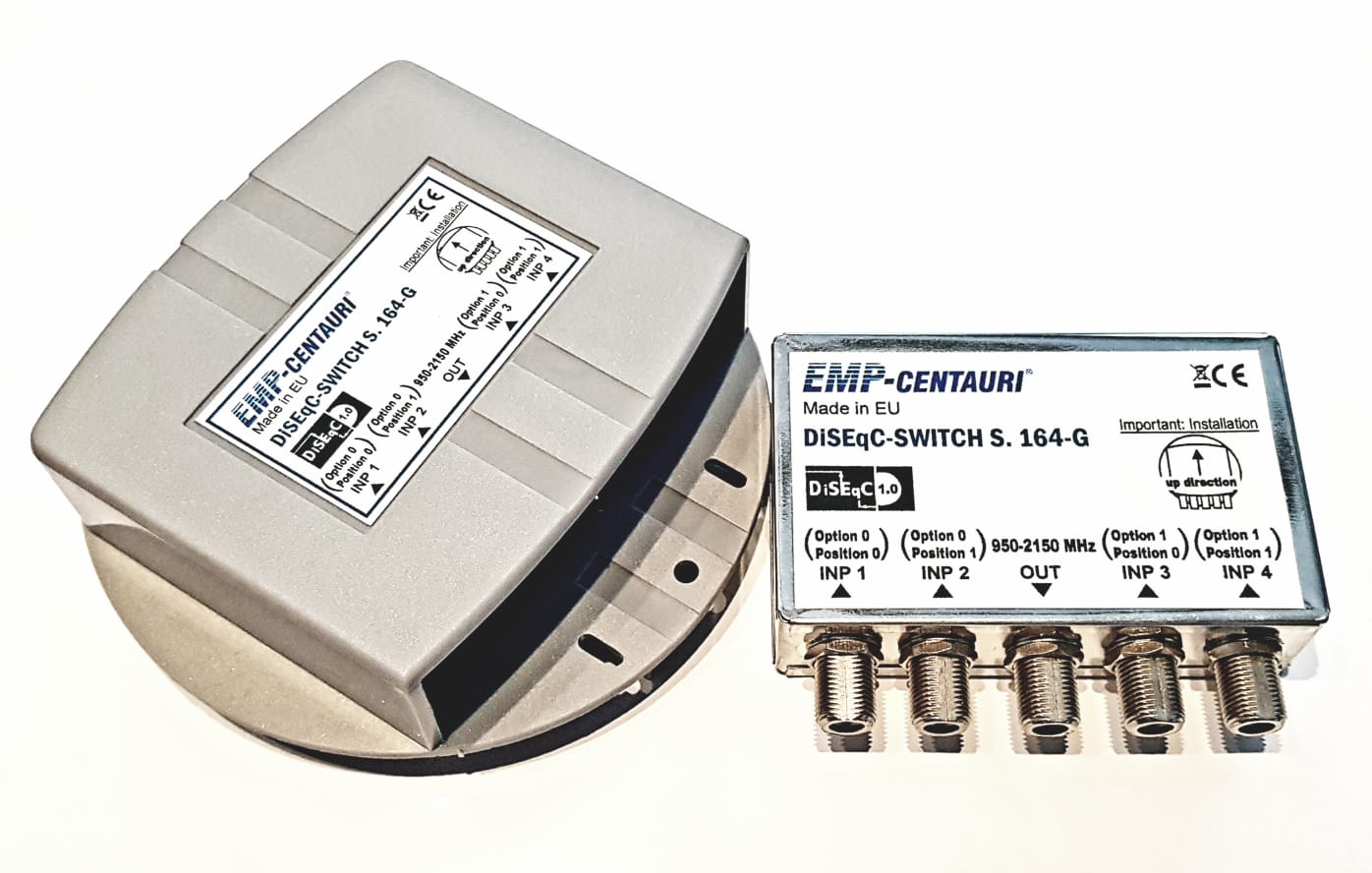

DiSEqC Switch S 164G

Overview

4in/1out DiSEqC 2.0 switch in weatherproof housing for connection of up to 4 satellite positions to one receiver. The inputs of the switch are controlled from a receiver by "Position" and "Option" commands and are through for 22 kHz and DiSEqC signals.

Specifications

  • Number of Inputs4
  • Number of Outputs1
  • Frequency Range950-2300 Mhz
  • ControlDiSEqC 1.0, 2.0, Position or Tone Burst, through for 22 kHz and DiSEqC commands
  • Insertion Loss8 dB max.
  • Isolation of Inputs25 dB min.
  • Current Dawn35 mA
  • Dimensions (w,d,h [cm])8.2 x 7.7 x 1.9
  • Temperature range-30 °C - +70 °C
