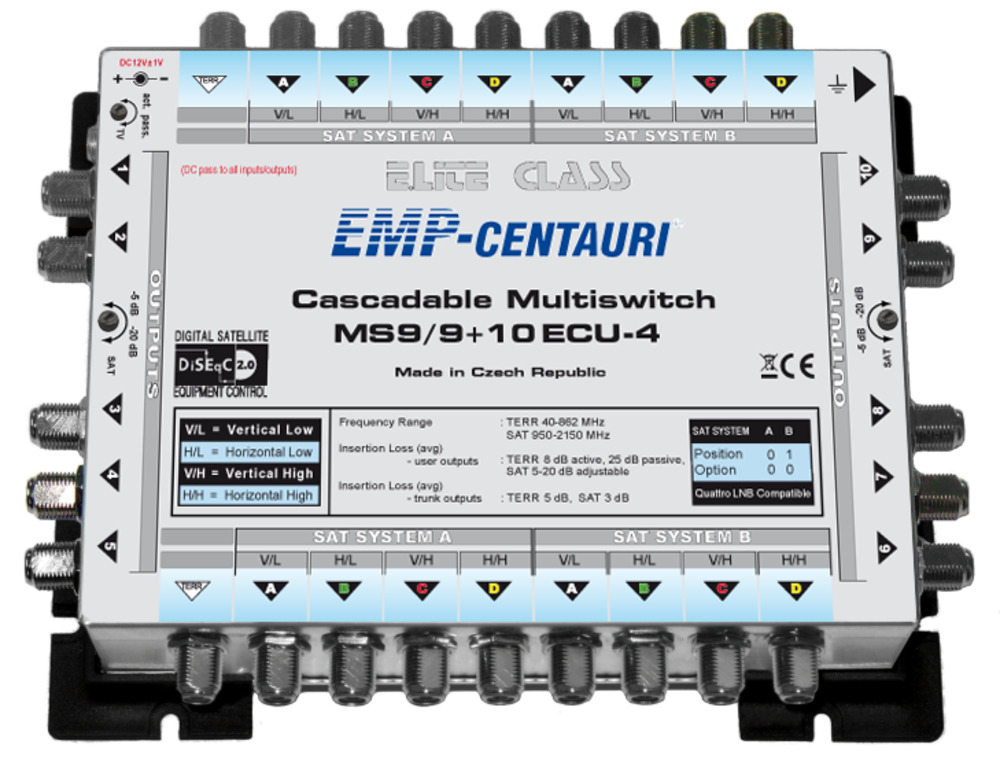

Cascadable Multiswitch MS9/9+10ECU-4



Overview

9in/9out+10 compact cascadable multiswitch for distribution terrestrial and satellite signals from 3 satellite positions (9 polarities) to 10 users.
The multiswitch is DC supplied from connected satellite receivers, DC2.1 socket for external power is connected to all trunk lines. DC power is present at the TERR line, avoid short circuit!
Using a rotary switch it is possible to switch terrestrial band from active to passive mode. The loss at user outputs in satellite band is adjustable by another rotary knob in the range 5-20dB. Each knob affects signal levels for groups of outputs, as indicated at product's sticker.

Features

Utilization





  •
