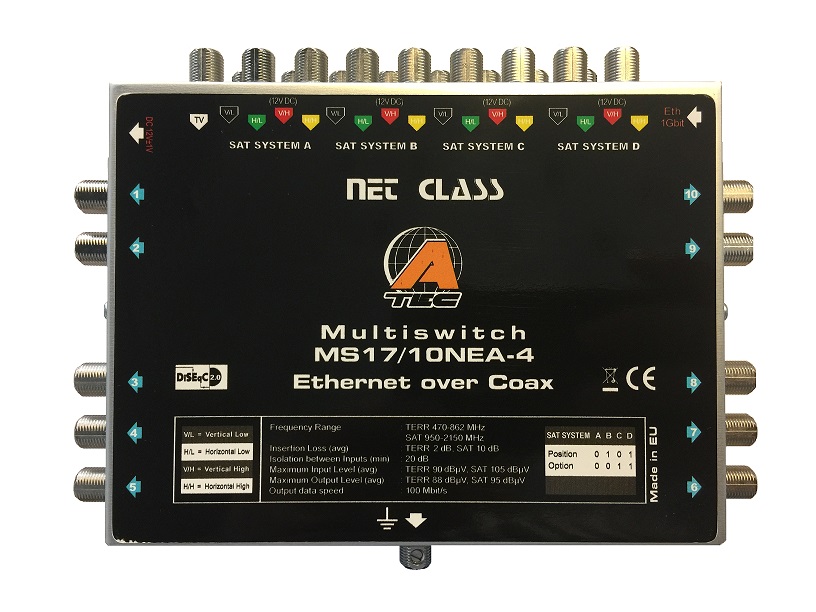

Multiswitch MS17/10Data



Overview

17in/10out standalone multiswitch for distribution of 16 SAT IF signals including UHF band for up to 10 users. External data link 1 Gbit/s (RJ45), 10 coaxial links 100 Mbit/s. Power supply PA12 F is included in the package. For use only with EMP-Centauri NET CLASS wall sockets!

Features

  • four years warranty
  • standard distribution of UHF and SAT channels
  • 100 Mbit/s data link over coaxial cable
  • •support of standards 10BASE-T/100BASE-TX
  • •comply with applicable sections of IEEE 802.3, IEEE 802.3u, IEEE 802.3x

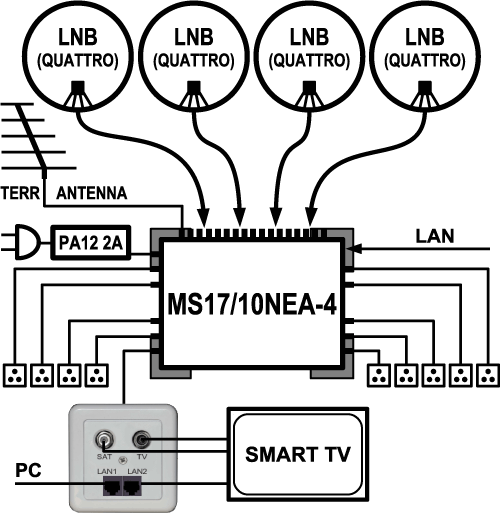

Utilization


Downloads

  • Instruction Manual and Technical Specifications Download
