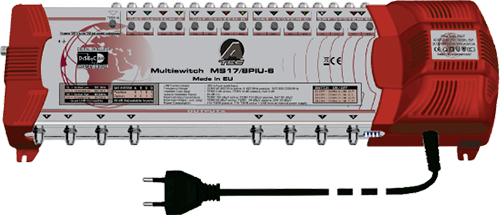

Multiswitch MS17/8PIU
Overview
17in/8out standalone multiswitches with an integrated power supply are designed for the distribution of terrestrial and satellite signals from 4 satellite positions for up to 8 subscribers. Multiswitches are compatible with all satellite receivers, which support DiSEqC control system. They are suitable for both analog and digital reception.
Features
- Input attenuators at all inputs
- Configurable support for Quad LNBs
- Selectable active / passive processing of terrestrial band
- 12V DC supply for terrestrial preamplifier
- Extended temperature range

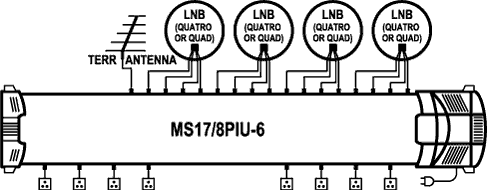

Utilization
Downloads
- Instruction Manual and Technical Specifications Download
