Unicable Splitters and Multiswitches
2550Unicable 2-way splitter, 5-2400 MHz
This Unicable™ splitter supports bidirectional distribution of DC and RF signals. It enables control signals and DiSEqC commands sent from the Set Top Boxes to the LNB as well as DiSEqC commands sent from the LNB to the Set Top Box. This high-quality Unicable™ splitter features low insertion loss, high RF isolation between the output ports and allows greater flexibility in single home or MDU installation scenarios. Typically, the splitter would be installed at a central location (i.e. roof’s attic) with separate coax cables stretched inside the house/apartment to each Set Top Box. The Unicable splitter embeds protective diodes to guarantee DC isolation between connected set top boxes.
Low insertion loss, high return loss and port isolation for satellite and CATV applications
Unicable compatible RF shielded Zinc die cast housing (Class A)
Grounding terminal Supplied with two mounting screws

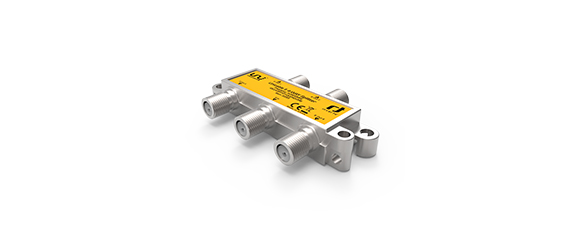

Light weight and compact size2551Unicable II 4-way splitter, 5-2400MHz
Frequency Range 5 - 2400MHz
Inputs 1x F-Type, female
Output 4x F-Type, female
Insertion Loss 8.5dB max.
Isolation between ports 18dB min.
Input Return Loss -10dB max.
Output Return loss -8dB max.
DC 22kHz pass from Output to Input Yes
Steering Diodes Yes
Power Consumption 0.3W
Working Temperature -30 ~ +60°C
Weight 45gr

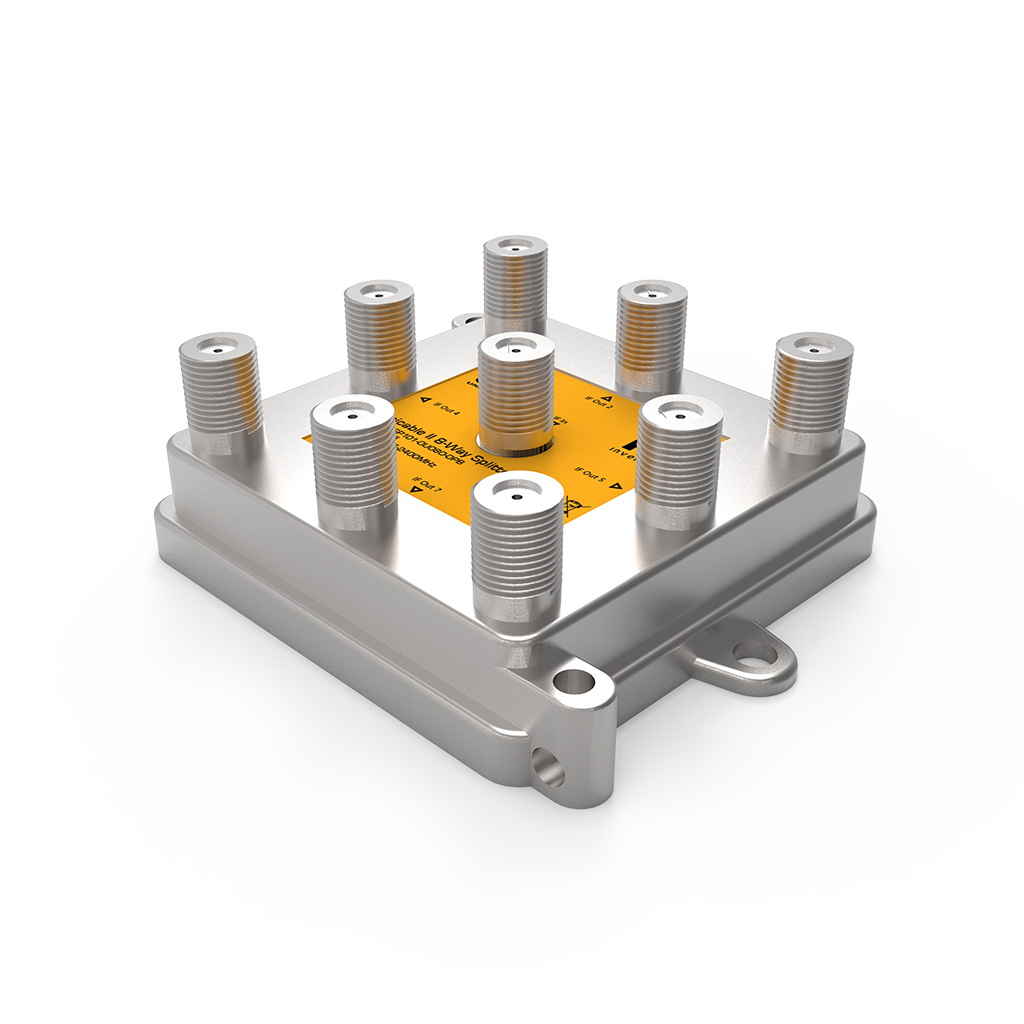

Dimensions 78x45.5x13.8mm2552Unicable II 8-way splitter, 5-2400MHz
Frequency Range 5-2400MHz
Inputs 1x F-Type, female
Output 8x F-Type, female
Insertion Loss 15.5dB max.
Isolation between ports 18dB min.
Input Return Loss -10dB max.
Output Return loss -8dB max.
DC 22kHz pass from Output to Input Yes
Steering Diodes Yes
Power Consumption 0.3W
Working Temperature -30 ~ +60°C
Weight 124.8g

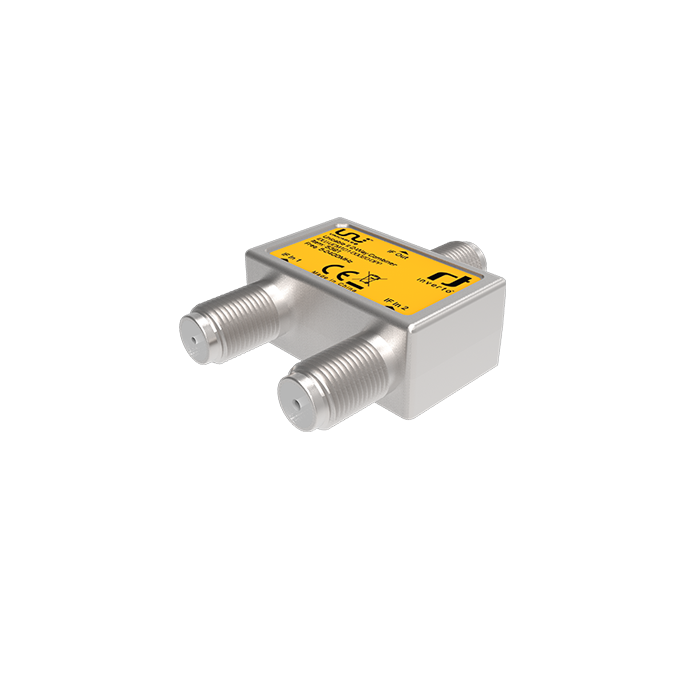

Dimensions 86.2x69x28.5mm5381Unicable 2 Way Combiner 5-2400MHZ
Frequency Range 5-2400MHz
Inputs 2x F-Type, female
Output 1x F-Type, female
Insertion Loss 4 dB max.
Isolation between ports 5 MHz ~ 47 MHz : 8 dB 47MHz ~ 2400 MHz : 16 dB min.
Input Return Loss 10dB max.
Output Return loss 8dB max.
DC 22kHz pass from Output to Input Yes
Impedance 75 Ω
Working Temperature -30 ~ +60°C
Weight 38 g

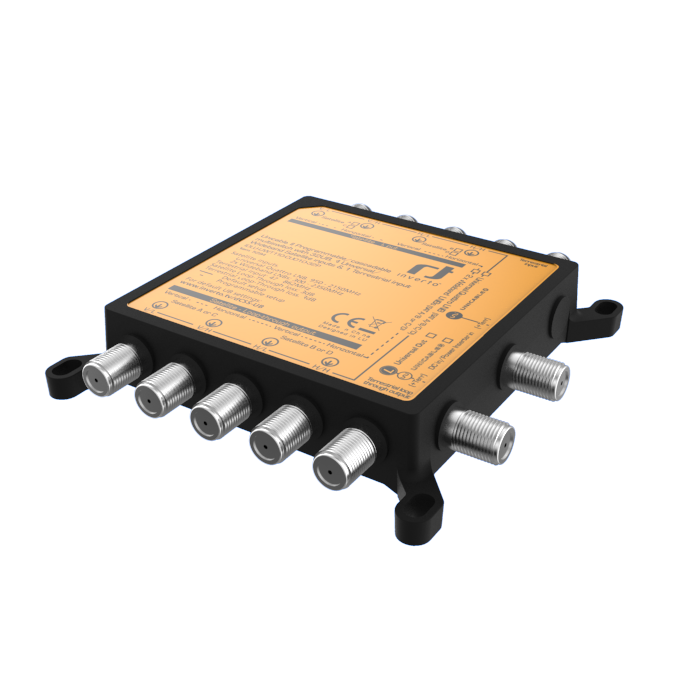

Dimensions 48.5 mm x 34.8 mm x 14.2mm5294Unicable 2 Multiswitch 32 users cascadable
Unicable II programmable and cascadable multiswitch with 32 user Bands, 4 Universal/Wideband Satellite inputs and 1 terrstrial input (AC/DC power adapter and power inserter included )
More ...
Last updated on 02-Oct-2024
EMP-Centauri DiSEqCs

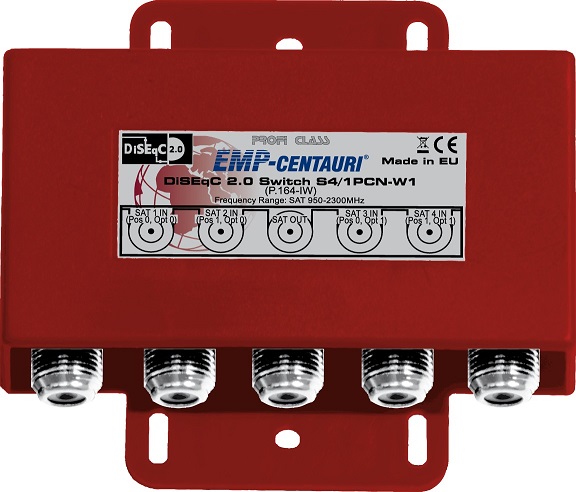

2503DiSEqC Switch P164IW
4in/1out DiSEqC 2.0 switch for up to 4 satellite positions and 1 subscriber. It is designed for switching between 3 or 4 LNBs, which are addressed in receiver's menu as DiSEqC 1.0 setting A/B/C/D.

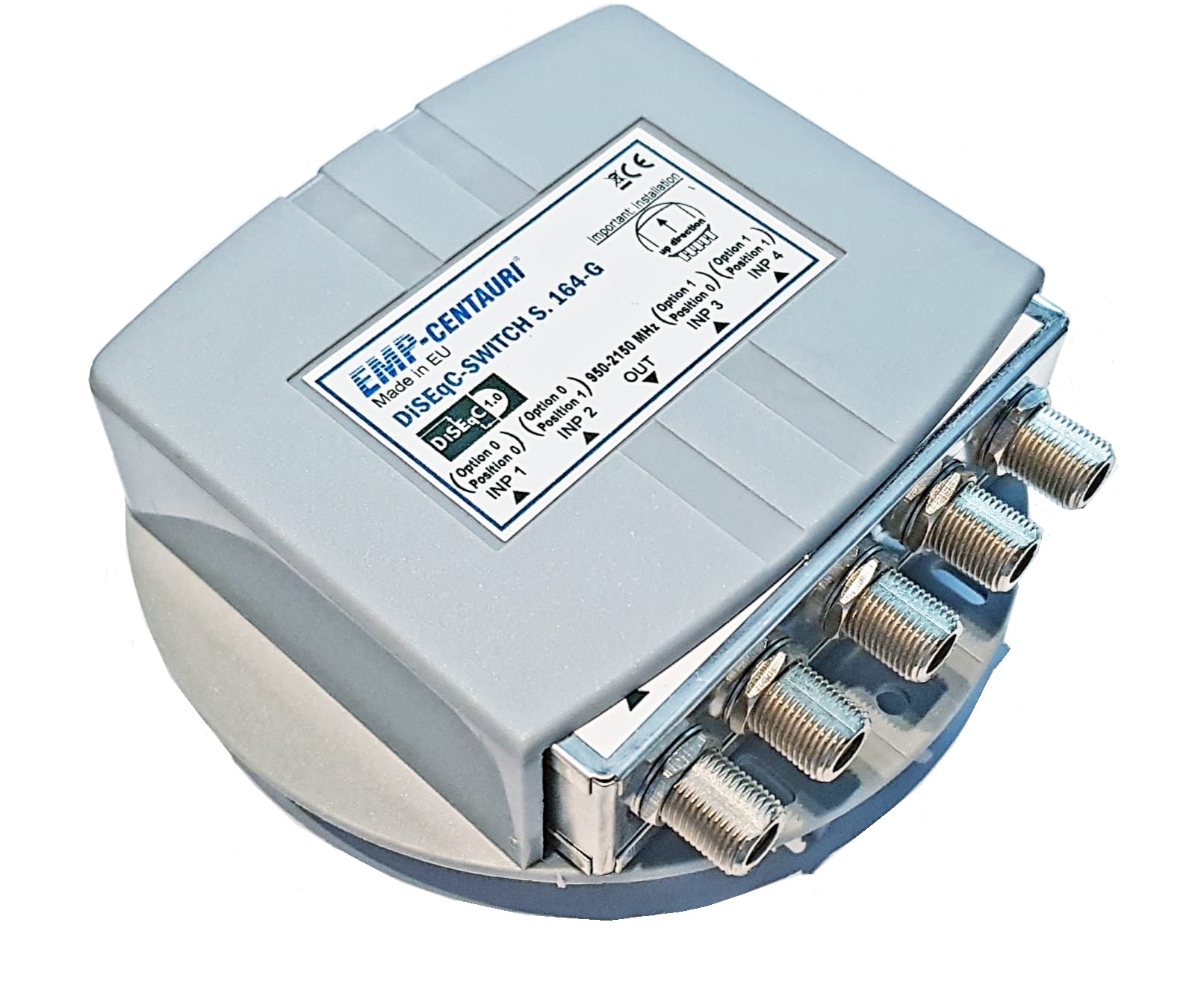

More ...2503ADiSEqC Switch S164-G
4in/1out DiSEqC 2.0 switch for up to 4 satellite positions and 1 subscriber. It is designed for switching between 3 or 4 LNBs, which are addressed in receiver's menu as DiSEqC 1.0 setting A/B/C/D.
More ...2501DiSEqC Switch 109-W
9in/1out 1.1 and 1.2 switch for up to 8 satellite positions and 1 subscriber, equipped with combiner for terrestrial band. It is designed for switching between 5 to 8 LNBs. Control mode is configured using built-in DIP switch, see Instruction manual for details. The product allows joining terrestrial band to common downlead.
More ...2502DiSEqC Switch S16-W
17in/1out 1.1 and 1.2 switch for up to 16 satellite positions and 1 subscriber, equipped with combiner for terrestrial band. It is designed for switching between 9 to 16 LNBs. Control mode is configured using built-in DIP switch, see Instruction manual for details. The product allows joining terrestrial band to common downlead.
More ...
Last updated on 13-Jul-2024
EMP-Centauri Amplifiers
2510Amplifier 15DB
1in/1out 15 dB gain terrestrial and satellite amplifier with high Pout and slope, feeded via coaxial cable from remote supply (9-20 V DC). The amplifier passes through DC power and LNB control.
More ...
Last updated on 13-Jul-2024
EMP-Centauri Multiswitches
2530Multiswitch MS17/8PIU
17in/8out standalone multiswitch for distribution of 16 SAT IF signals including terrestrial for up to 8 users
More ...2531Multiswitch MS17/12PIU
17in/12out standalone multiswitch for distribution of 16 SAT IF signals including terrestrial for up to 12 users
More ...2532Multiswitch MS17/16PIU
17in/16out standalone multiswitch for distribution of 16 SAT IF signals including terrestrial for up to 16 users
More ...2533Multiswitch MS17/26PIU
17in/26out standalone multiswitch for distribution of 16 SAT IF signals including terrestrial for up to 26 users
More ...2534Multiswitch MS25/12PIU
25in/12out standalone multiswitch for distribution of 24 SAT IF signals including terrestrial for up to 12 users
More ...2535Multiswitch MS33/12PIU
33in/12out standalone multiswitch for distribution of 32 SAT IF signals including terrestrial for up to 12 users

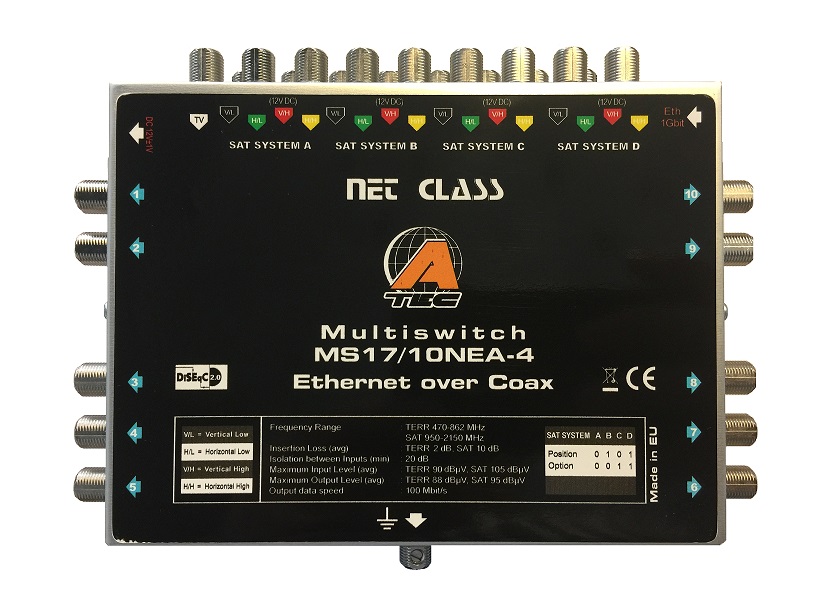

More ...2540Multiswitch MS17/10 data
17in/10out standalone multiswitch for distribution of 16 SAT IF signals including UHF band for up to 10 users. External data link 1 Gbit/s (RJ45), 10 coaxial links 100 Mbit/s. Power supply PA12 F is included in the package. For use only with EMP-Centauri NET CLASS wall sockets!

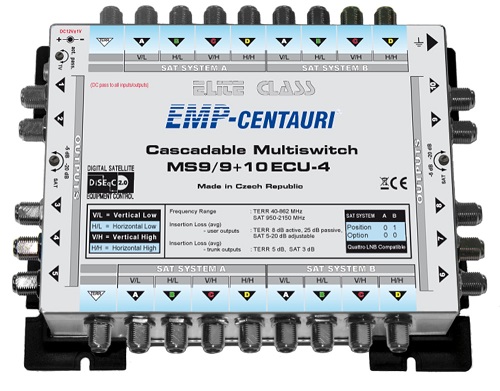

More ...2560Cascadable Multiswitch MS9/9+10ECU-4
9in/9out+10 compact cascadable multiswitch for distribution terrestrial and satellite signals from 3 satellite positions (9 polarities) to 10 users.

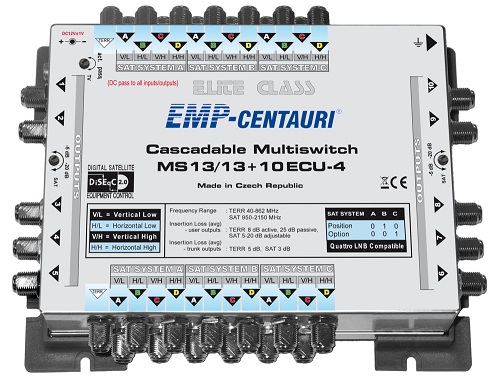

More ...2561Cascadable Multiswitch MS13/13+10ECU-4
13in/13out+10 compact cascadable multiswitch for distribution terrestrial and satellite signals from 3 satellite positions (12 polarities) to 10 users

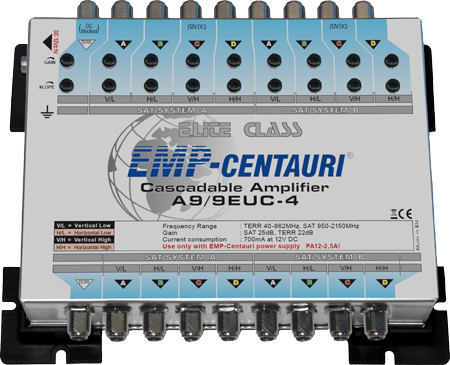

More ...2570Amplifier A9/9EUC-4
9in/9out cascadable amplifier with adjustable gain and slope steepness for distribution of terrestrial & satellite signals from 2 satellite positions (8 polarities). The amplifier is powered from power supply PA12 2A (included). The voltage appears on every SAT input and can supply the LNB. This voltage also appears on V/H & TERR outputs and can supply other devices in the cascade. All other outputs are DC blocked.

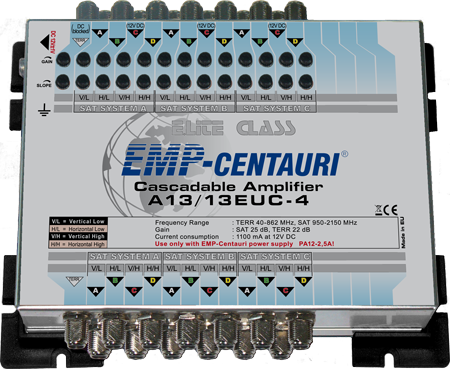

2571Amplifier A13/13EUC-4
13in/13out cascadable amplifier with adjustable gain and slope steepness for distribution of terrestrial & satellite signals from 3 satellite position (12 polarities). The amplifier is powered from power supply PA12 2A (included). The voltage appears on every SAT input and can supply the LNB. This voltage also appears on V/H & TERR outputs and can supply other devices in the cascade. All other outputs are DC blocked.
2579Power Supply for cascadable
Power supply for cascadable amplifier or switch.
