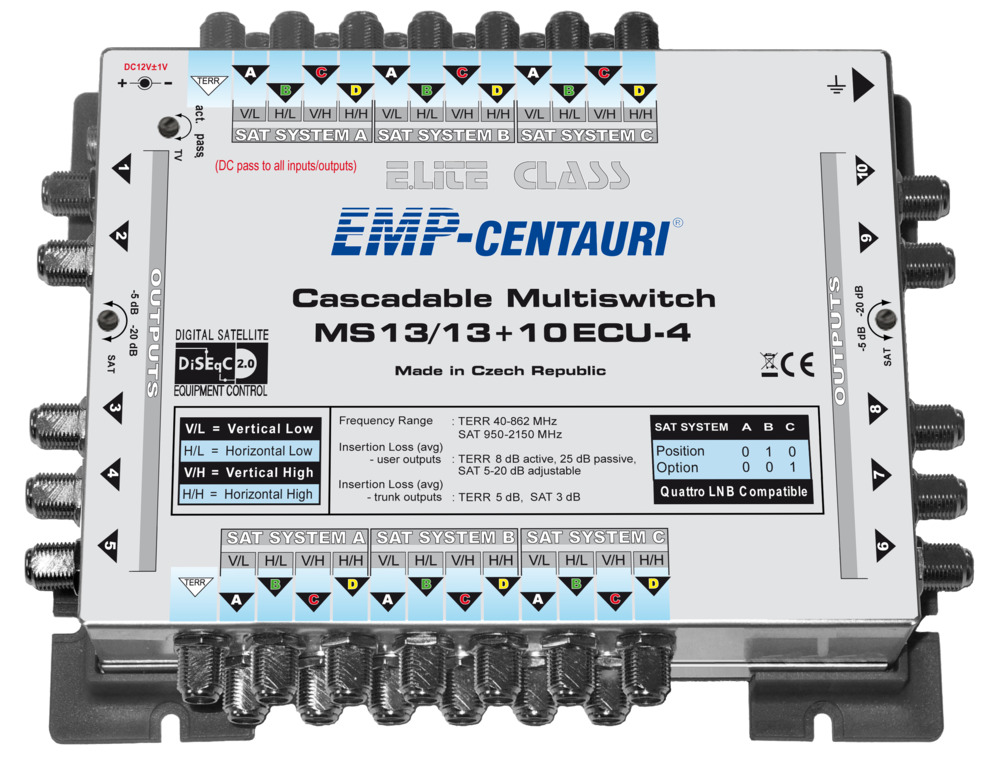

Cascadable Multiswitch MS13/13+10ECU-4
Overview
13in/13out+10 compact cascadable multiswitch for distribution
terrestrial and satellite signals from 3 satellite positions (12
polarities) to 10 users.
The multiswitch is DC supplied from connected satellite
receivers, DC2.1 socket for external power is connected to all
trunk lines. DC power is present at the TERR line, avoid short
circuit!
Using a rotary switch it is possible to switch terrestrial band
from active to passive mode. The loss at user outputs in
satellite band is adjustable by another rotary knob in the range
5-20dB. Each knob affects signal levels for groups of outputs,
as indicated at product's sticker.
Features

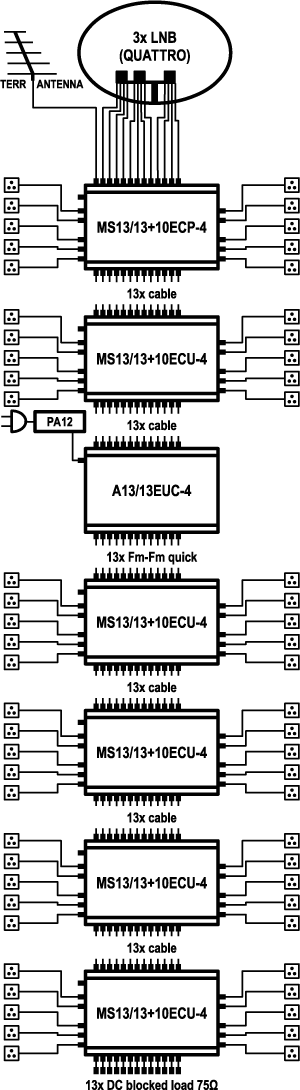

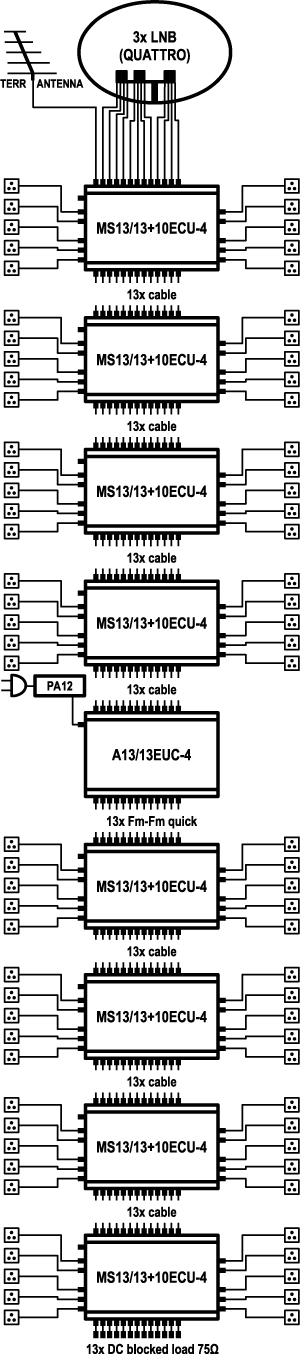

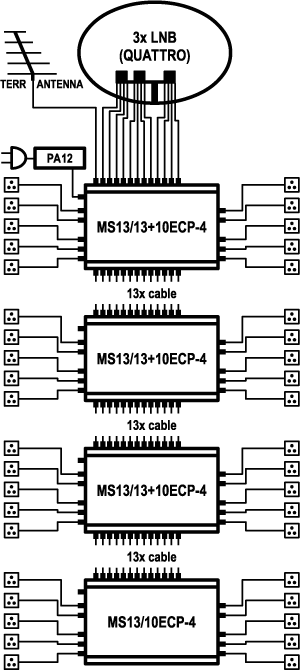

Utilization
