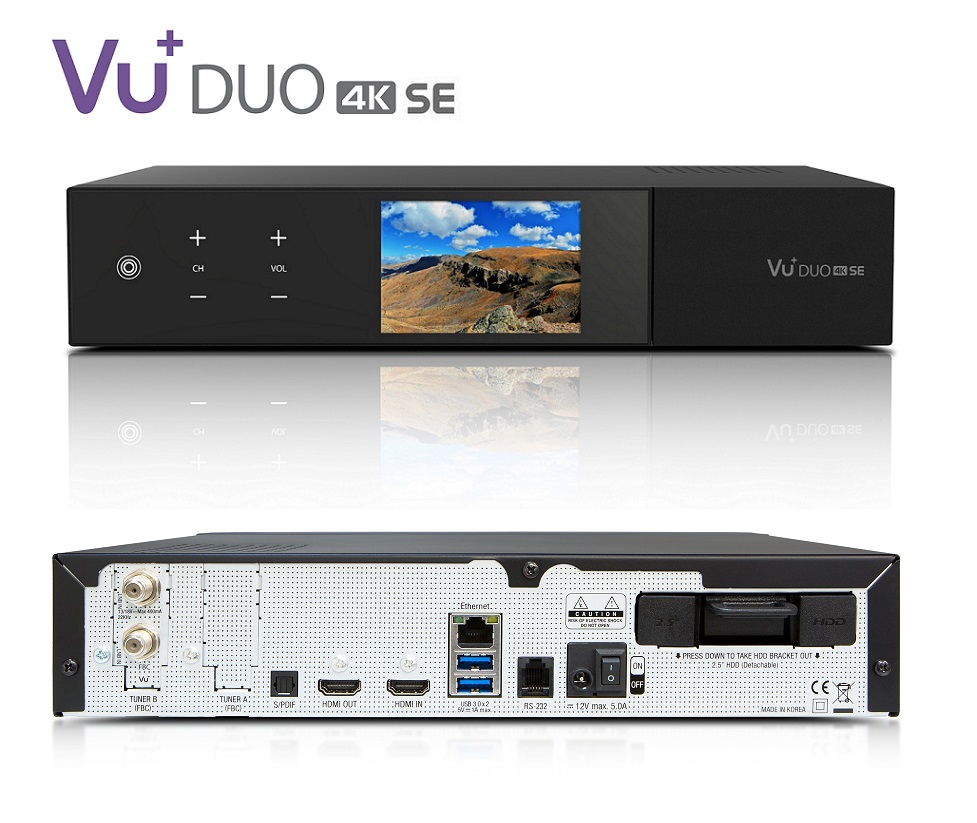

Vu+ DUO 4k se


Key Features:

  • Very fast switching times
  • WebKit browser
  • Chromium OS
  • Dual HD transcoding
  • HbbTV
  • HDMI 2.0 output
  • HDMI 2.0 input
  • Gigabit LAN
  • DualBand WiFi (2.4 / 5 GHz)
  • Simultaneous decryption of 2 CI modules
  • BT 4.1 for e.g. BT soundbars or headphones

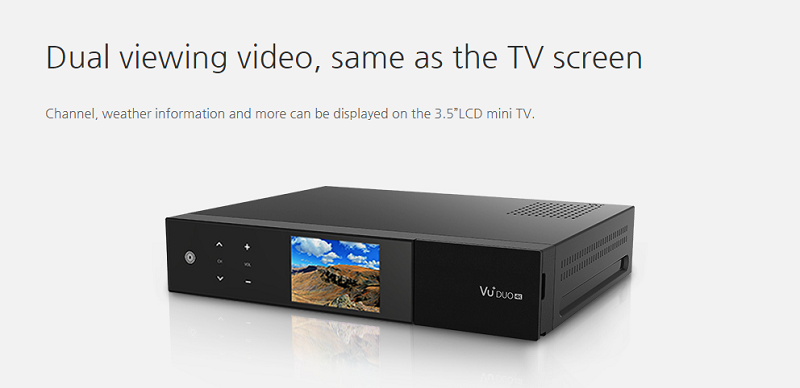

  • 3.5 "TFT LCD display - MiniTV

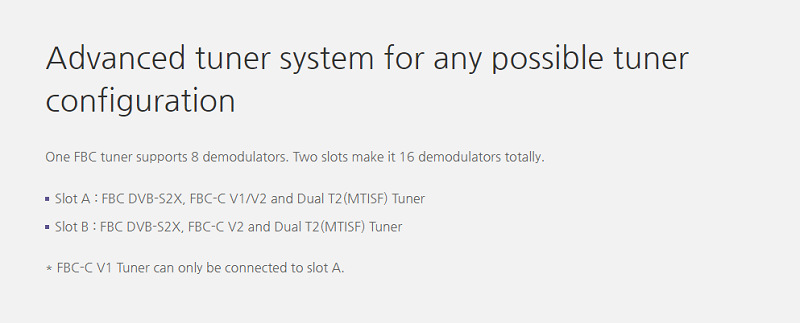

  • 2x tuner slot for e.g. DVB-S2 / DVB-C * Full Band Capture (FBC) or DVB-T2 dual tuner
  • USB 3.0
  • ARM CPU (4x 1,500 MHz)
  • eMMC flash memory
  • HEVC / H.265 video decoding
  • Plug & Play removable frame for 2.5 "SATA hard disks (max. 15 mm HDD height)
  • External 12 V power supply



Technical highlights:

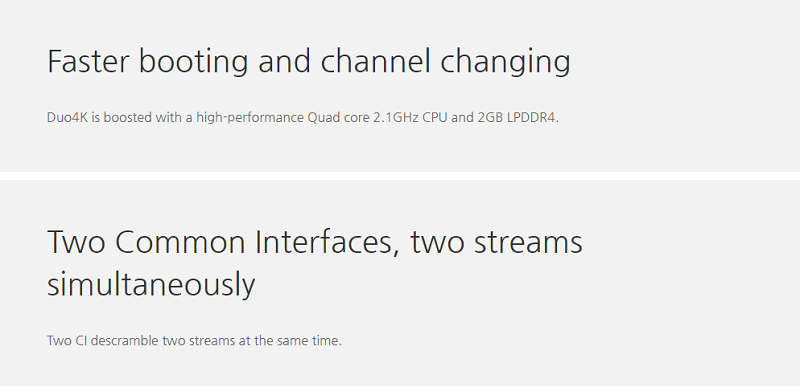

  • 1,500 MHz ARM QuadCore processor
  • 4096 MB Flash (eMMC)
  • 3072 MB RAM
  • Gigabit LAN (10/100/1000 MBit / s)
  • WLAN: IEEE 802.11 b / g / n / ac 2.4 / 5 GHz integrated
  • BT 4.1 integrated for e.g. BT soundbars or headphones
  • 2x DVB common interface slot (simultaneous use possible)
  • 1x smart card reader (Xcrypt)
  • 2x USB 3.0 (rear)
  • 1x USB 2.0 (front)
  • 3.5 "TFT LCD display - MiniTV
  • S / PDIF audio output optical (digital)
  • 1x HDMI 2.0 video / audio output (digital)
  • 1x HDMI 2.0 video / audio input (digital)
  • unlimited channel list for TV and radio
  • EPG (Electronic Program Guide) support
  • Support of bouquet lists (favorites lists)
  • OSD in many languages
  • The appearance of the user interface can be varied in various ways (skin support)
  • Expandable with many free plugins (apps)
  • automatic / manual channel search
  • DiSEqC 1.0 / 1.1 / 1.2, USALS
  • SCR / dCSS (EN50494 & EN50607)
  • External 12 volt power supply
  • Power switch
  • RS232 service interface
  • Free apps available for iOS and Android



Video decoding:

  • Video compression HVEC / H.265, MPEG-2 / H.264 and MPEG-1 compatible
  • Video standard PAL G / 25 Hz, NTSC
  • Aspect ratio 4: 3/16: 9
  • Letterbox for 4: 3 TV sets



Output digital:

  • Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz
  • S / PDIF output optical (AC3)
  • Audio compression MPEG-1 & MPEG-2 Layer I and II, MP3
  • Audio mode dual (main / sub), stereo
  • Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz



Power consumption:

<15W (in operation, with LNB)

<14W (in operation, without LNB)

<0.5W (deep standby mode)



External power supply:

  • Input: 110 - 240V AC / 50 - 60Hz / 1.5A
  • Output: 12V = / 5.0A



General:

  • Ambient temperature + 15 ° C ... + 35 ° C
  • Humidity <80%
  • Dimensions (W x D x H): 310 mm x 255 mm x 68 mm
  • Weight: 2.9 kg



Scope of delivery:

1x VU + Duo 4K SE UHD Receiver

1x remote control

1x Quickmanual (German / English)

1x HDMI cable

2x batteries (AA)

1x power supply (110-240V / 12V)
